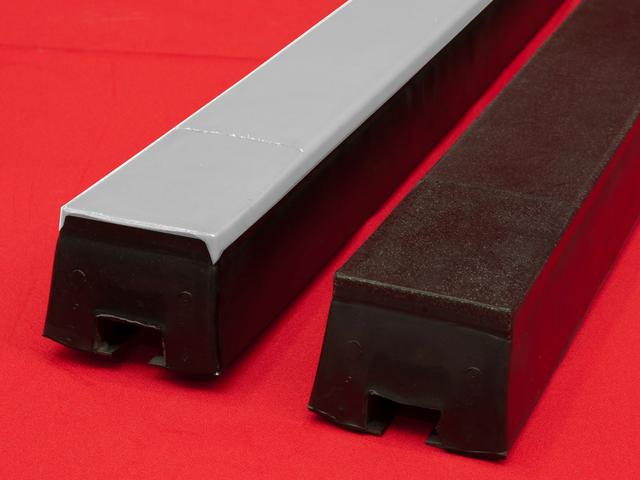

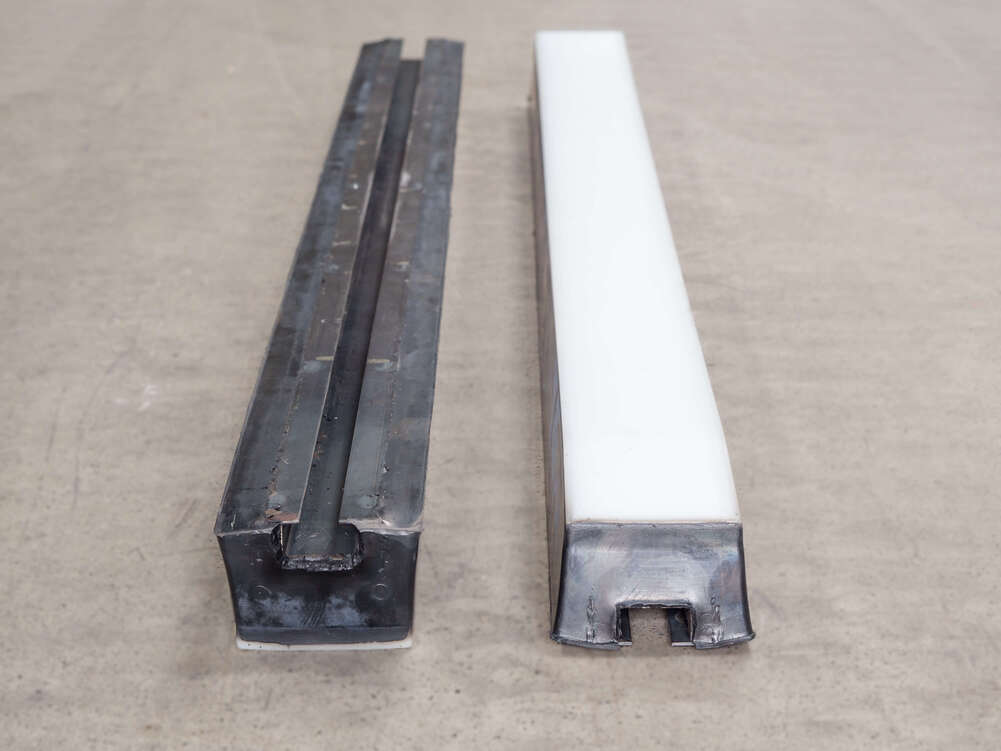

Impact bars

Impact bars are providing maximum belt support in the place of material landing and therefore minimizing the damage of the conveyor belt.

Use case

This product is applied in impact beds, which provide maximal support for the belt at the point of material impact on the conveyor belt, thereby minimizing damage to the conveyor belt.

The technical rubber on impact bars is certified as a fireproof rubber for underground service by the testing laboratory in Radvanice. We manufacture rubber and other rubber products used in the underground (discs, rings, etc.).

Application: Mounted on impact beds, or as spare parts.

Technical parameters

Length (mm) Width (mm) Thickness (mm) Colors
1235 100 75 Black, Black-white

Physical properties

Technical terms of acceptance

View PDF
Rubber 65±5 Shore
Cover High moleculat polyethylen
Steel profile (mm) 75x24
